A Wide Passband Frequency Selective Surface with Angular Stability

doi:10.12142/ZTECOM.202501010

ZTE Communications ›› 2025, Vol. 23 ›› Issue (1): 78-84.DOI: 10.12142/ZTECOM.202501010

• Research Papers • Previous Articles Next Articles

A Wide Passband Frequency Selective Surface with Angular Stability

TANG Xingyang¹, SUI Jia¹, FU Jiahui¹(), YANG Kaiwen², ZHAO Zhipeng²

^1.Harbin Institute of Technology, Harbin 150001, China
^2.ZTE Corporation, Shenzhen 518057, China

Received:2023-09-24 Online:2025-03-25 Published:2025-03-25
About author:TANG Xingyang received his bachelor’s degree in electromagnetic field and wireless technology from Harbin Institute of Technology, China in 2022. He is currently pursuing his master’s degree in electronic information at Harbin Institute of Technology.
SUI Jia received his BE degree in electronic science and technology from the Harbin Institute of Technology, China in 2021, where he is currently pursuing his ME degree in electronic science and technology. His current research interests are the design of frequency selective surfaces and frequency selective absorber.
FU Jiahui (fjh@hit.edu.cn) received his PhD degree in information and communication engineering from Harbin Institute of Technology, China in 2005. His current research interests are the design of microwave and millimeter wave circuits, antennas, supernormal media, MEMS and EMC. He has published more than 50 relevant academic papers in domestic and foreign journals.
YANG Kaiwen received his BS degree in electronic and information engineering and PhD degree in electromagnetic fields and microwave technology from Xidian University, China in 2016 and 2021, respectively. He is currently an engineer in ZTE Corporation. His current research interests include filtering antennas and base station antennas.
ZHAO Zhipeng received his BS and PhD degrees from Xidian University, China in 2015 and 2020, and then joined ZTE Corporation. He is currently a senior RF system engineer there. His main research directions include the 5G base station, non-terrestrial networks, vehicle radar, etc.
Supported by:
ZTE Industry?University?Institute Cooperation Funds(IA20220800001)

Abstract

Abstract:

A wide passband frequency selective surface (FSS) is proposed using a five-layer stacked structure. The proposed structure applies four layers of dielectric plates and five layers of metal patches to provide a passband and exhibits more stable frequency responses and lower insertion loss under wide-angle oblique incidence compared with the typical three-layer metal-dielectric structure. According to the simulation results, the proposed FSS can achieve a passband range of 1.7–2.7 GHz with an insertion loss of less than 0.5 dB and a relative bandwidth of 44.1%, and it can preserve stable transmission characteristics with the incident angle ranging from 0° to 45°.

Key words: frequency selective surface (FSS), wide bandwidth, low insertion loss

TANG Xingyang, SUI Jia, FU Jiahui, YANG Kaiwen, ZHAO Zhipeng. A Wide Passband Frequency Selective Surface with Angular Stability[J]. ZTE Communications, 2025, 23(1): 78-84.

Figures/Tables 8

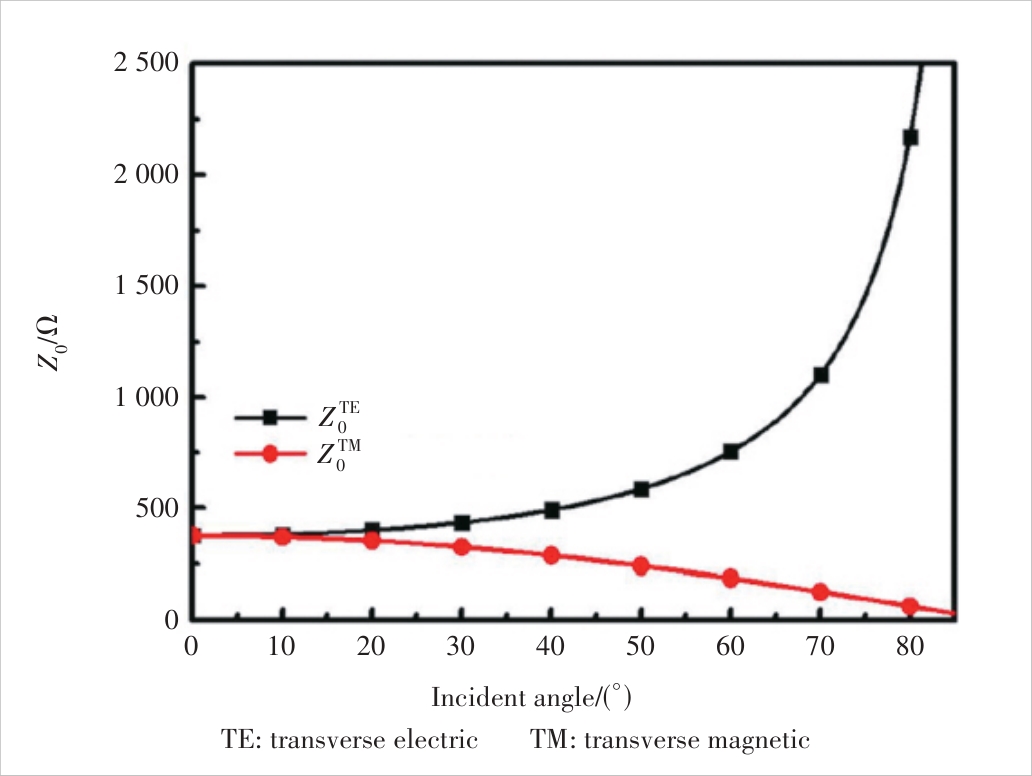

Figure 1 Wave impedance of free space under oblique incidence

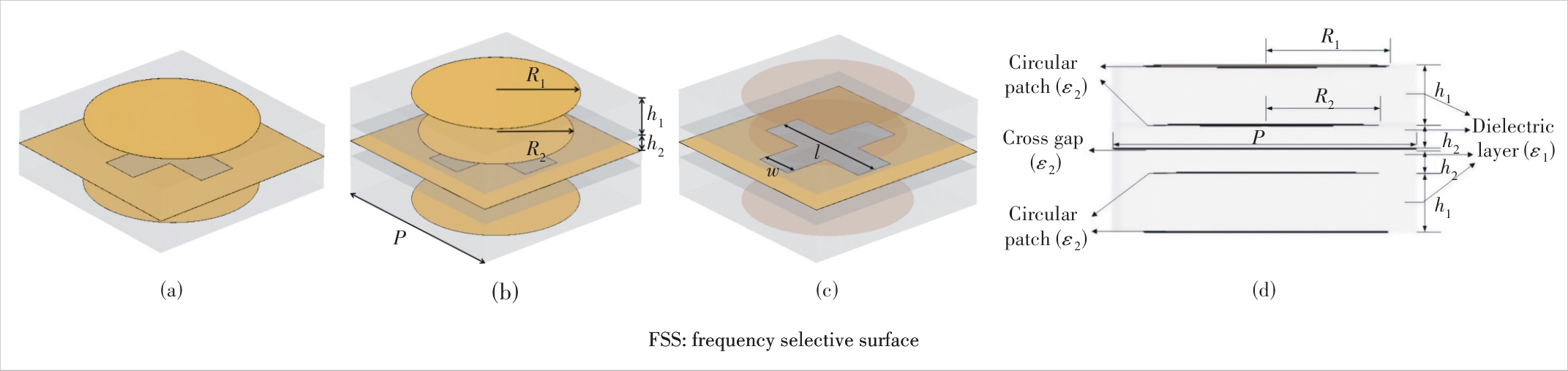

Figure 2 Geometry of the proposed wideband FSS: (a) 3D view of three-layer FSS; (b) 3D view of the proposed FSS (unit: mm; P = 36, R1 = 14.7,R2 = 13.5, h1 = 7, and h2 = 2.81); (c) 3D view of the interlayer cross slot of the proposed FSS (unit: mm; l = 24.14 and w = 7.29); (d) side view

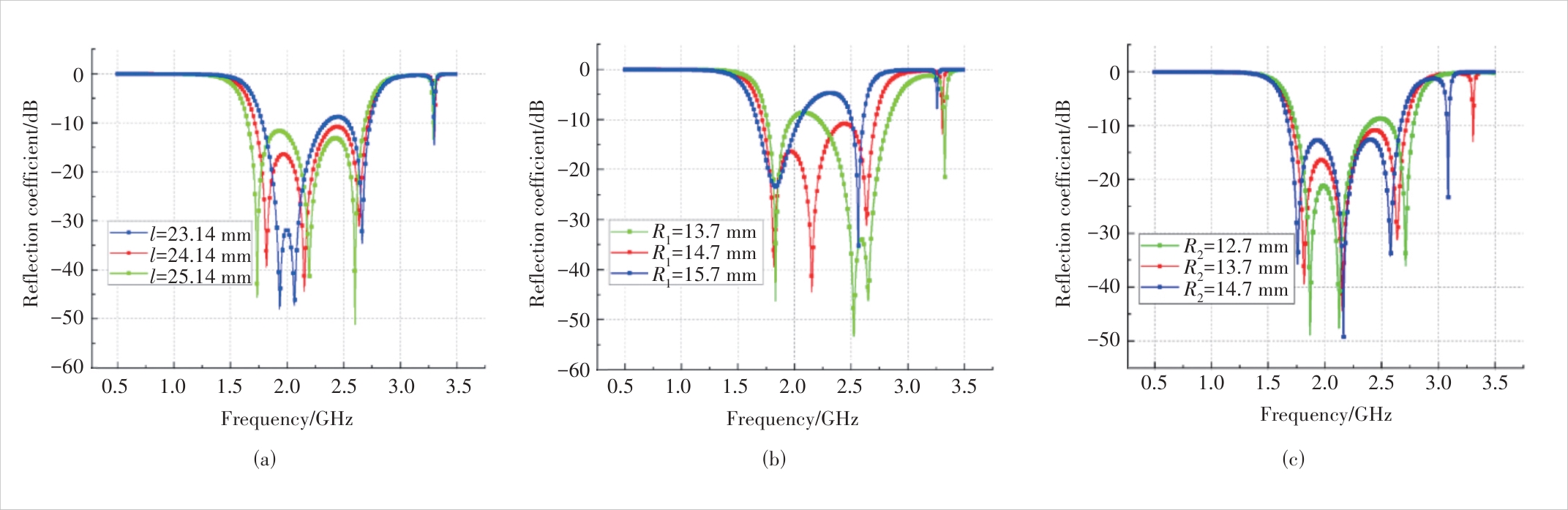

Figure 3 Simulation scattering parameter results of FSS unit cell: (a) results with different cross slot lengths l; (b) results with different top patchradii R1; (c) results with different middle patch radii R2

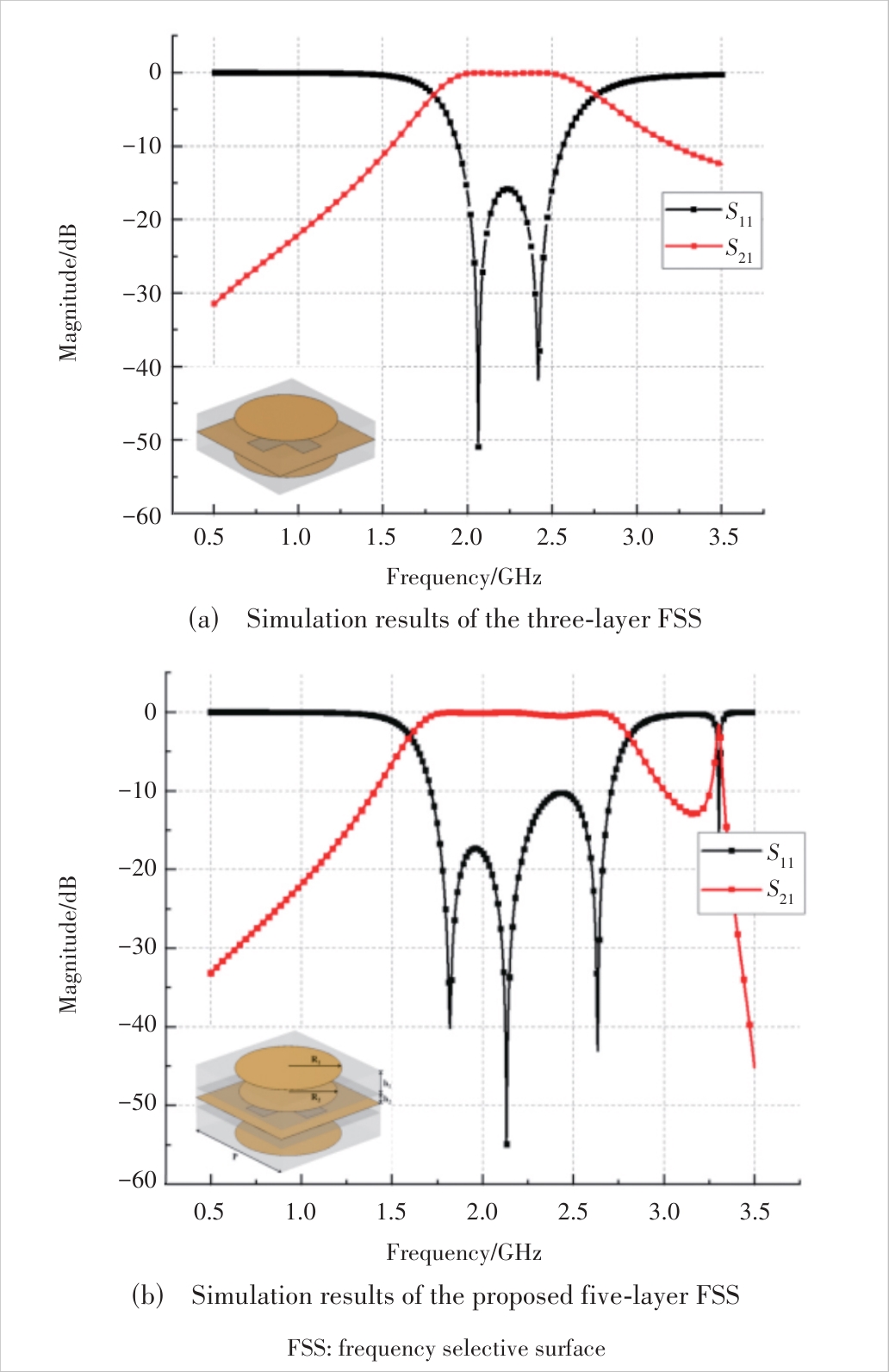

Figure 4 Simulation results of the TE model

Figure 5 Insertion loss and polarization conversion

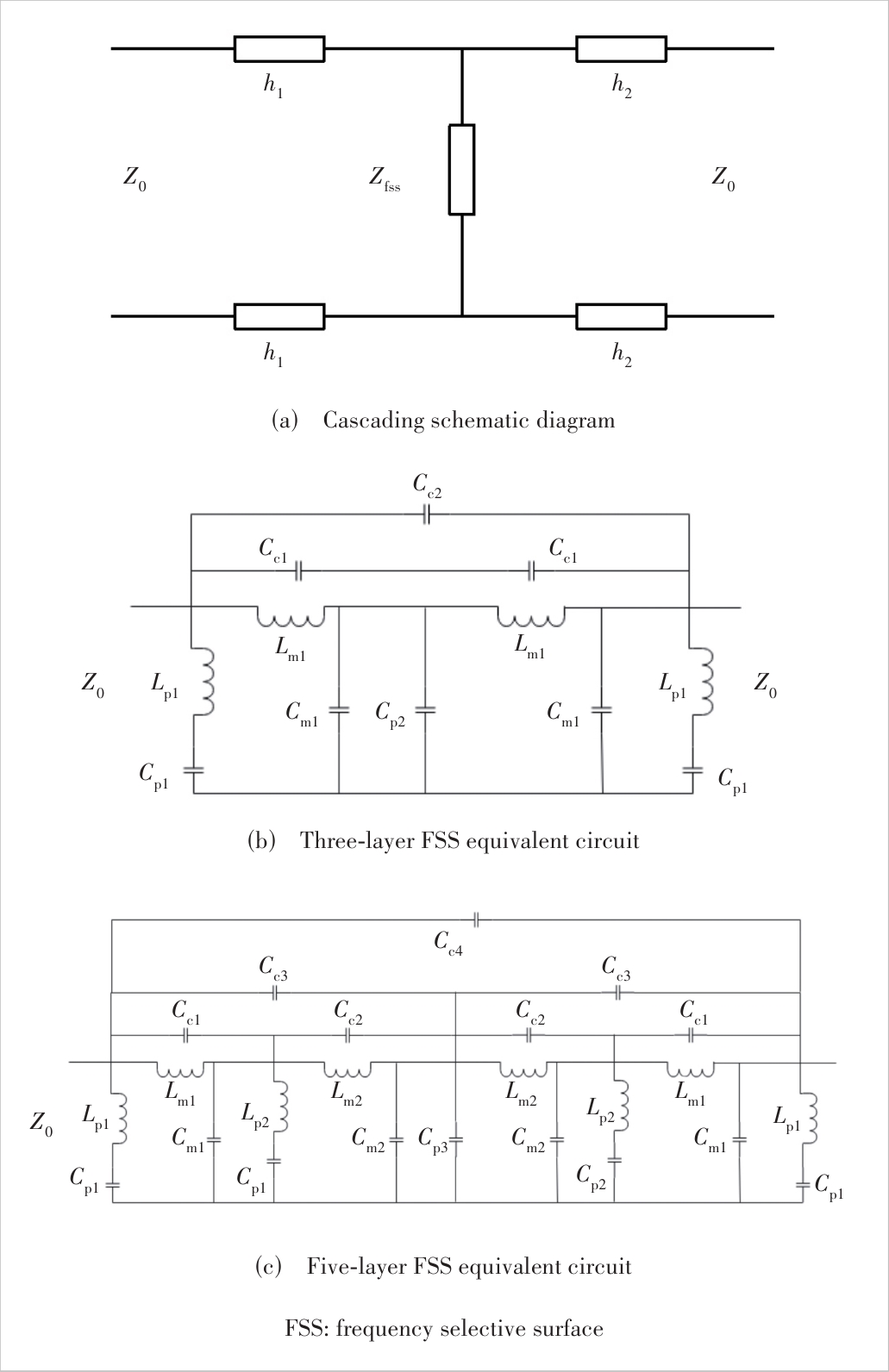

Figure 6 Equivalent-circuit model of FSS

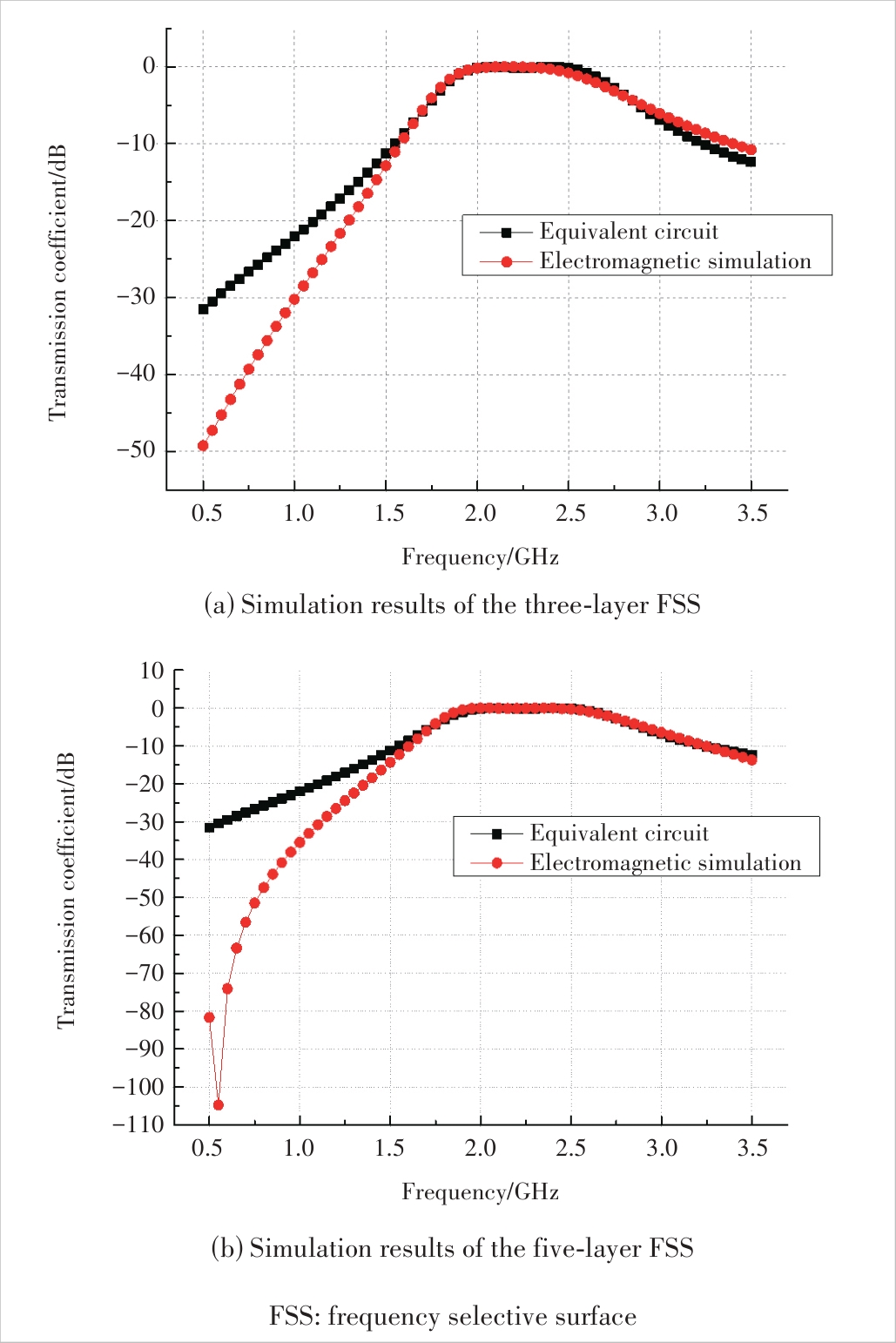

Figure 7 Comparison results of equivalent circuit simulation with electromagnetic simulation

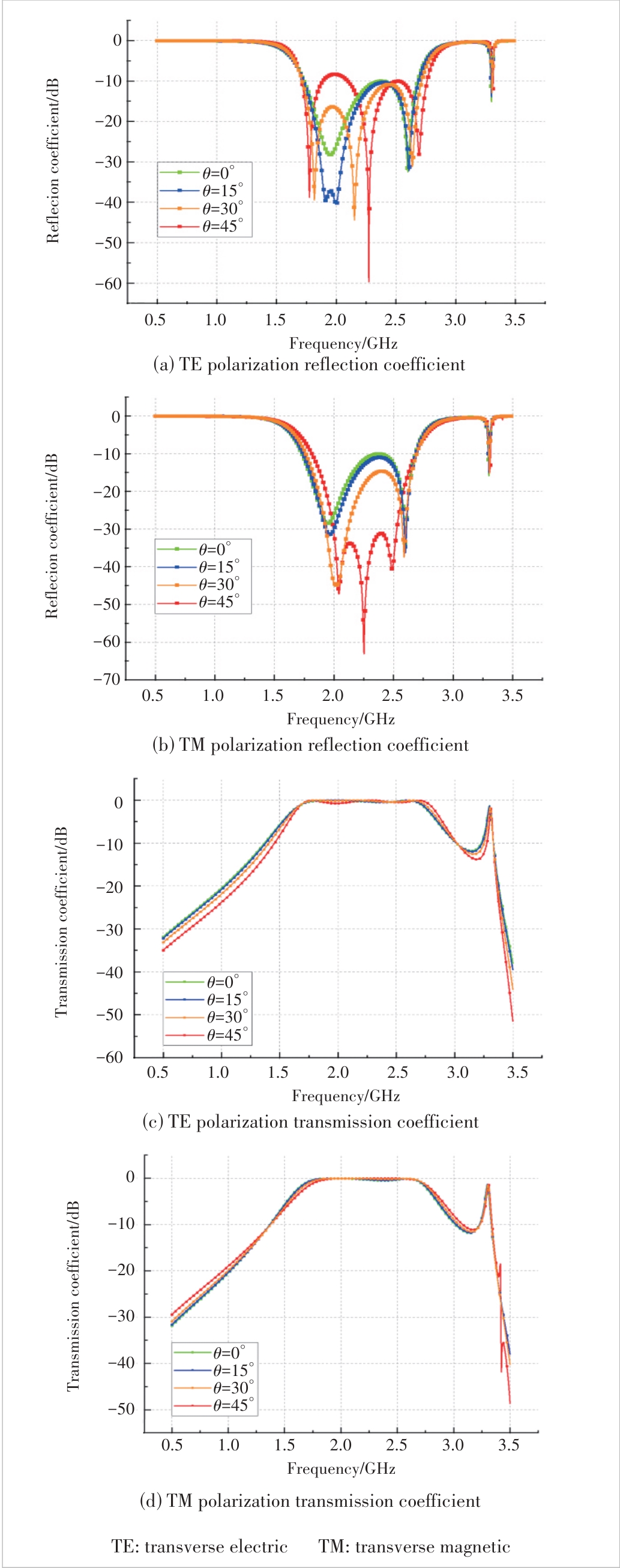

Figure 8 Simulated scattering parameter results of the FSS unit cell under oblique incident angles

References 14

1	MITTRA R, CHAN C H, CWIK T. Techniques for analyzing frequency selective surfaces: a review [J]. Proceedings of the IEEE, 1988, 76(12): 1593–1615. DOI: 10.1109/5.16352
2	MUNK B A. Frequency selective surfaces: theory and design [M]. New York, USA: Wiley, 2000. DOI: 10.1002/0471723770
3	MUNK B A. Finite antenna arrays and FSS [M]. New York, USA: Wiley, 2003. DOI: 10.1002/0471457531
4	KURRA L, ABEGAONKAR M P, BASU A, et al. FSS properties of a uniplanar EBG and its application in directivity enhancement of a microstrip antenna [J]. IEEE antennas and wireless propagation letters, 2016, 15: 1606–1609. DOI: 10.1109/LAWP.2016.2518299
5	XU R, LI J Y, WEI K, et al. A broadband slot antenna with unidirectional circularly polarized radiation patterns [J]. IEEE antennas and wireless propagation letters, 2016, 16: 317–320. DOI: 10.1109/LAWP.2016.2574808
6	WANG L L, LIU S B, KONG X K, et al. Frequency-selective rasorber with a wide high-transmission passband based on multiple coplanar parallel resonances [J]. IEEE antennas and wireless propagation letters, 2020, 19(2): 337–340. DOI: 10.1109/LAWP.2019.2962223
7	YANG Z Q, JIANG W, HUANG Q L, et al. A 2.5-D miniaturized frequency-selective rasorber with a wide high-transmission passband [J]. IEEE antennas and wireless propagation letters, 2021, 20(7): 1140–1144. DOI: 10.1109/LAWP.2021.3073777
8	JIN C, LV Q H, WANG J L, et al. Capped dielectric inserted perforated metallic plate bandpass frequency selective surface [J]. IEEE transactions on antennas and propagation, 2017, 65(12): 7129–7136. DOI: 10.1109/TAP.2017.2764524
9	WANG P, JIANG W, HONG T, et al. A 3D wide passband frequency selective surface with sharp roll-off sidebands and angular stability [J]. IEEE antennas and wireless propagation letters, 2022, 21(2): 252–256. DOI: 10.1109/LAWP.2021.3126890
10	WEI P S, CHIU C N, CHOU C C, et al. Miniaturized dual-band FSS suitable for curved surface application [J]. IEEE antennas and wireless propagation letters, 2020, 19(12): 2265–2269. DOI: 10.1109/LAWP.2020.3029820
11	LI T W, FAN Y D, GU Y J, et al. A novel miniaturized multiband strong coupled-FSS structure insensitive to almost all angles and all polarizations [J]. IEEE transactions on antennas and propagation, 2021, 69(12): 8470–8478. DOI: 10.1109/TAP.2021.3063351
12	ZHAO S J, HUANG M, YANG F, et al. A novel wideband FSS radome with loaded inductors [C]//International Applied Computational Electromagnetics Society Symposium (ACES-China). IEEE, 2022: 1–2. DOI: 10.1109/ACES-China56081.2022.10065188
13	DANUOR P, JUNG Y B. A simple reconfigurable FSS structure for antenna beam steering applications [C]//Proceedings of International Conference on Electronics, Information, and Communication (ICEIC). IEEE, 2023: 1–3. DOI: 10.1109/ICEIC57457.2023.10049862
14	LIANG F C, WANG J B, WANG J H, et al. Influence of curvature on the transmission characteristics of cylindrical frequency selective surfaces [J]. Journal of Changchun University of Science and Technology (natural science edition), 2013, 36(Z2): 65–66+106
