Integrated All-Light Network for Air, Space, Land, and Sea

doi:10.12142/ZTECOM.202502012

ZTE Communications ›› 2025, Vol. 23 ›› Issue (2): 109-114.DOI: 10.12142/ZTECOM.202502012

• Research Papers • Previous Articles

Integrated All-Light Network for Air, Space, Land, and Sea

LIANG Yingze¹^,², WANG Linning¹^,², QI Ziqian¹, LIU Pengzhan¹, WANG Yongjin¹()

^1.GaN Optoelectronic Integration International Cooperation Joint Laboratory of Jiangsu Province, Nanjing 210003, China
^2.Nanjing University of Posts and Telecommunications, Nanjing 210003, China

Received:2024-12-10 Online:2025-06-25 Published:2025-06-10
About author:LIANG Yingze received his BS degree in communication engineering from East China Jiaotong University, China in 2022. He is currently working toward a master's degree in electronic information at Nanjing University of Posts and Telecommunications, China. His primary research interest lies in wireless optical communication and its application systems, including embedded development, communication electronics, and signal processing circuits.
WANG Linning received his BS degree in communications engineering and master's degree in electronics and communication engineering from Nanjing University of Posts and Telecommunications, China in 2018 and 2021, respectively. He is currently working toward a PhD degree in communication and information systems at Nanjing University of Posts and Telecommunications. His primary research interest lies in wireless optical communication and its application systems, including embedded development, communication electronics, and signal processing circuits.
QI Ziqian received his BS degree in electronic information engineering from Dalian Jiaotong University, China in 2021 and master's degree in electronics and communication engineering from Nanjing University of Posts and Telecommunications, China in 2024. His primary research interest lies in wireless optical communication and its application systems, including embedded development, communication electronics, and signal processing circuits.
LIU Pengzhan received his MS degree from Nanjing University of Posts and Telecommunications, China. Now he is a PhD student there under the supervision of Prof. WANG Yongjin. His research interests include all-light wireless optical communication networks and integrated GaN optoelectronic devices.
WANG Yongjin (wangyj@njupt.edu.cn) received his PhD degree in microelectronics and solid-state electronics from the Shanghai Institute of Microsystem and Information Technology, Chinese Academy of Sciences in 2005. He was engaged in research work with the University of Freiburg, Germany, Tohoku University, Japan, Forschungszentrum Jülich, Germany, and the University of Bristol, UK. Since 2011, he has been a professor with Nanjing University of Posts and Telecommunications, China. He is currently the chief investigator of the National Innovation Base for Micro-Nano Device and Information System, China. His research interests include III-nitride monolithic photonic circuits for visible light communication and the Internet of Things. He was the recipient of many scholarships, including the Humboldt Foundation Scholarship, the JSPS Special Researcher Scholarship, and the Royal Society for Engineering Scholarship.
First author contact:The authors contributed equally to this work.
Supported by:
the National Natural Science Foundation of China(U21A20495);Development Program of China(2022YFE0112000);Higher Education Discipline Innovation Project(D17018)

Abstract

Abstract:

To meet the demands of high-speed communication under strong electromagnetic interference, an all-light network (ALN) based on a multi-band optical communication system is proposed. It is designed for cross-scenario interconnection and networking, covering air, space, land, and sea. The ALN integrates four types of optical links: underwater blue light communication, white light illumination communication, solar-blind deep ultraviolet communication, and long-distance laser communication systems. These links are interconnected via Ethernet switches with the Transmission Control Protocol (TCP). Any ALN node supports both wired and wireless device access. The data transmission performance between network nodes was tested, with a maximum transmission delay of 73.3 ms, a maximum packet loss rate of 6.1%, and a maximum jitter of 15 ms. This comprehensive all-light network with all-scenario coverage lays the foundation for the future development of network technologies and the digital economy.

Key words: all-light network, multi-band optical communication system, Ethernet switches

LIANG Yingze, WANG Linning, QI Ziqian, LIU Pengzhan, WANG Yongjin. Integrated All-Light Network for Air, Space, Land, and Sea[J]. ZTE Communications, 2025, 23(2): 109-114.

Figures/Tables 8

Figure 1 All-light network (ALN) applications spanning air, space, land and sea

Figure 2 Electroluminescence spectra variation of white LED in white light illumination communication with increasing injection currents

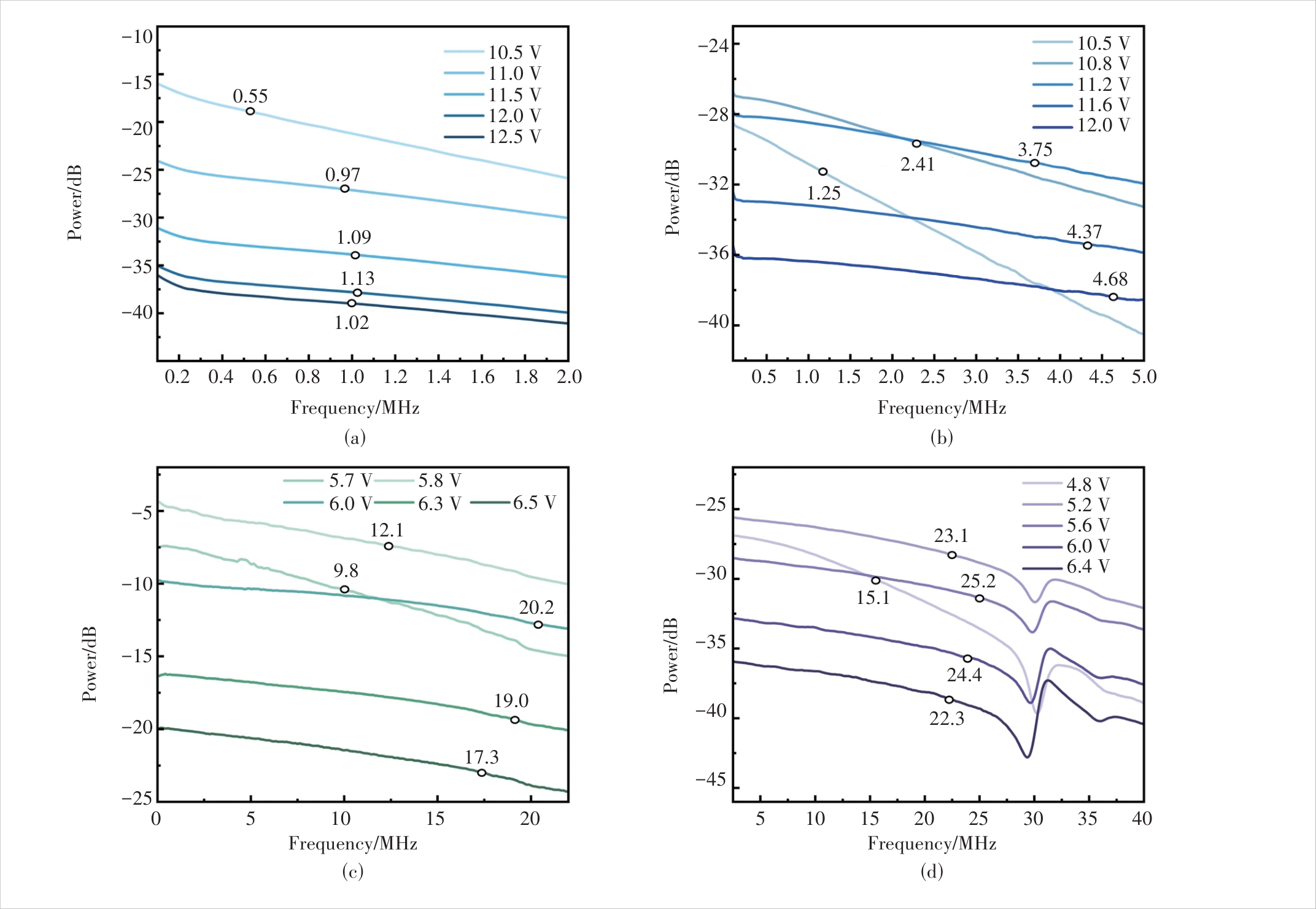

Figure 3 (a) 3 dB bandwidth variation of the white LED with increasing offset voltages; (b) 3 dB bandwidth variation of the blue LED with increasing offset voltages; (c) 3 dB bandwidth variation of the green LD with increasing offset voltages; (d) 3 dB bandwidth variation of the deep-ultraviolet LED with increasing offset voltages

Figure 4 Schematic of the proposed all-light network (ALN) framework

Figure 5 Demonstration of signal flow in all-light network (ALN)

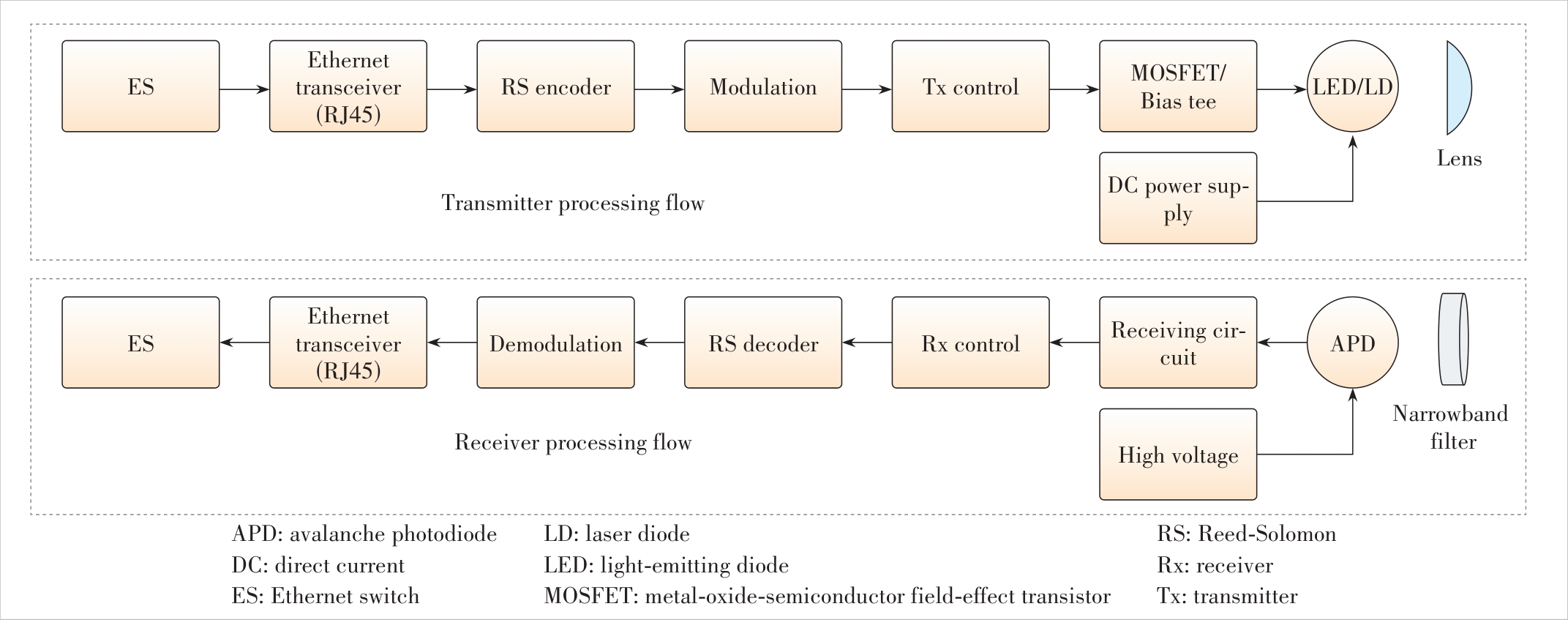

Figure 6 Transmission and reception principles of full-duplex optical communication systems

Figure 7 (a) 20 Mbit/s PRBS signals from Rx of the system; (b) eye diagram of the analog signal output from TIA

Figure 8 (a) Delay, (b) PLR, and (c) jitter results of five nodes accessing each other

References 15

1	SHAY T M, MACCANNELL J A, GARRETT C D, et al. First experimental demonstration of full-duplex communication on a single laser beam [C]//Proc. Free-Space Laser Communication and Active Laser Illumination III. SPIE, 2004. DOI: 10.1117/12.508511
2	O'BRIEN D, TURNBULL R, MINH H L, et al. A 280 Mbit/s infra-red optical wireless communications system [C]//Proc. Free-Space and Atmospheric Laser Communications XI. SPIE, 2011. DOI: 10.1117/12.895092
3	WANG K, NIRMALATHAS A, LIM C, et al. Experimental demonstration of a full-duplex indoor optical wireless communication system [J]. IEEE photonics technology letters, 2012, 24(3): 188–190. DOI: 10.1109/LPT.2011.2175912
4	WANG K. Quasi-passive indoor optical wireless communication systems [J]. IEEE photonics technology letters, 2020, 32(21): 1373–1376. DOI: 10.1109/LPT.2020.3026343
5	ABDALLA I, RAHAIM M B, LITTLE T D C. Interference in multi-user optical wireless communications systems [J]. Philosophical transactions of the royal society a: mathematical, physical and engineering sciences, 2020, 378(2169): 20190190. DOI: 10.1098/rsta.2019.0190
6	TSONEV D, VIDEV S, HAAS H. Light fidelity (Li-Fi): towards all-optical networking [C]//Proc. Broadband Access Communication Technologies VIII. SPIE, 2013. DOI: 10.1117/12.2044649
7	LI J, UYSAL M. Optical wireless communications: system model, capacity and coding [C]//Proc. IEEE 58th Vehicular Technology Conference (VTC 2003-Fall). IEEE, 2003: 168–172. DOI: 10.1109/VETECF.2003.1285000
8	OUBEI H M, SHEN C, KAMMOUN A, et al. Light based underwater wireless communications [J]. Japanese journal of applied physics, 2018, 57(8S2): 08PA06. DOI: 10.7567/JJAP.57.08PA06
9	ROSHEIM M E, SAUTER G F. Free-space optical communications system pointer [C]//Proc. Free-Space Laser Communication Technologies XV. SPIE, 2003: 126–133. DOI: 10.1117/12.501653
10	LIN A B, TONG Z, SONG Y H, et al. Underwater wireless optical communication system using blue LEDs [J]. Journal of physics: conference series, 2016, 679: 1–5. DOI: 10.1088/1742-6596/679/1/012032
11	ARNON S. Underwater optical wireless communication network [J]. Optical engineering, 2010, 49(1): 1–6. DOI: 10.1117/1.3280288
12	QI Z Q, WANG L N, LIU P Z, et al. Full-duplex underwater wireless blue light communication [J]. Optics express, 2023, 31(6): 9330–9338. DOI: 10.1364/oe.483966
13	ZHOU Z H, YIN H X, YAO Y X. Wireless optical communication performance simulation and full-duplex communication experimental system with different seawater environment [C]//Proc. IEEE International Conference on Signal Processing, Communications and Computing (ICSPCC). IEEE, 2019. DOI: 10.1109/icspcc46631.2019.8960905
14	WANG L N, BAI M M, QI Z Q, et al. Full-duplex wireless deep ultraviolet light communication [J]. Optics letters, 2022, 47(19): 5064–5067. DOI: 10.1364/OL.473369
15	LIANG Y Z, WANG L N, QI Z Q, et al. Full-duplex wireless light communication using green laser diodes [J]. Optics express, 2024, 32(8): 13543–13551. DOI: 10.1364/oe.519815
