Precise Location of Passive Intermodulation in Long Cables by Fractional Frequency Based Multi-Range Rulers

doi:10.12142/ZTECOM.202501013

ZTE Communications ›› 2025, Vol. 23 ›› Issue (1): 101-106.DOI: 10.12142/ZTECOM.202501013

• Research Papers • 上一篇下一篇

收稿日期:2024-03-04 出版日期:2025-03-25 发布日期:2025-03-25

Precise Location of Passive Intermodulation in Long Cables by Fractional Frequency Based Multi-Range Rulers

DONG Anhua¹, LIANG Haodong², ZHU Shaohao², ZHANG Qi¹, ZHAO Deshuang¹()

^1.University of Electronic Science and Technology of China, Chengdu 611731, China
^2.ZTE Corporation, Shenzhen 518057, China

Received:2024-03-04 Online:2025-03-25 Published:2025-03-25
About author:DONG Anhua received his BS degree from Jilin University, China in 2021. He is currently pursuing his ME degree at University of Electronic Science and Technology of China. His research interests include the positioning of radiated passive inter-modulation.
LIANG Haodong received his PhD degree in guidance, navigation and control from University of Electronic Science and Technology of China in 2021. He is currently an algorithm engineer at ZTE Corporation. His research interests include the modeling and positioning of passive inter-modulation.
ZHU Shaohao received his PhD degree in underwater acoustic engineering from Northwestern Polytechnical University, China in 2021. He is currently an RF algorithm engineer at ZTE Corporation. His research interests include PIM mechanism, PIM cancellation, source location, and array beamforming.
ZHANG Qi received his BS degree from Henan Polytechnic University, China in 2023. He is currently pursuing his ME degree at University of Electronic Science and Technology of China. His research interest focuses on the positioning of radiated passive intermodulation.
ZHAO Deshuang (dszhao@uestc.edu.cn) received his PhD degree in optical engineering from University of Electronic Science and Technology of China (UESTC), in 2005. He is currently a professor with the School of Physics, UESTC. His research interests include the modeling and positioning of conductor-guided and radiated passive intermodulation.

摘要/Abstract

Abstract:

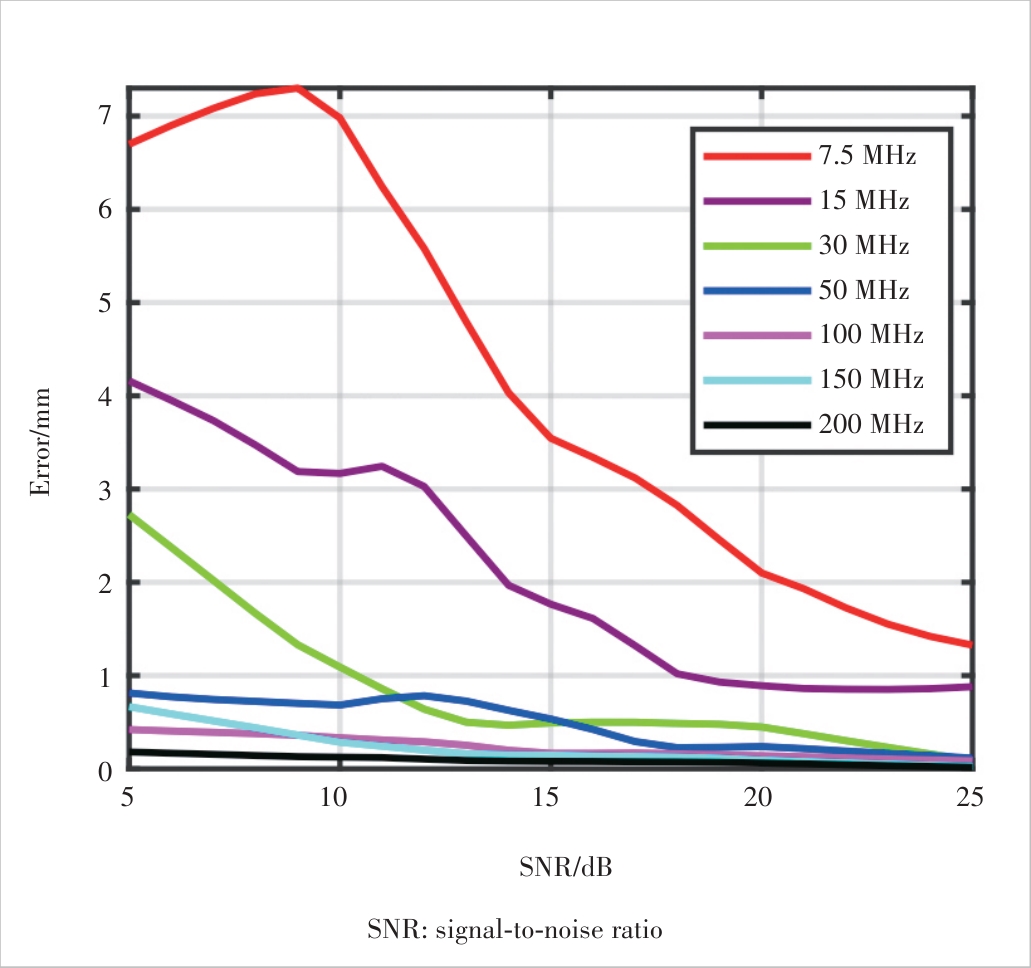

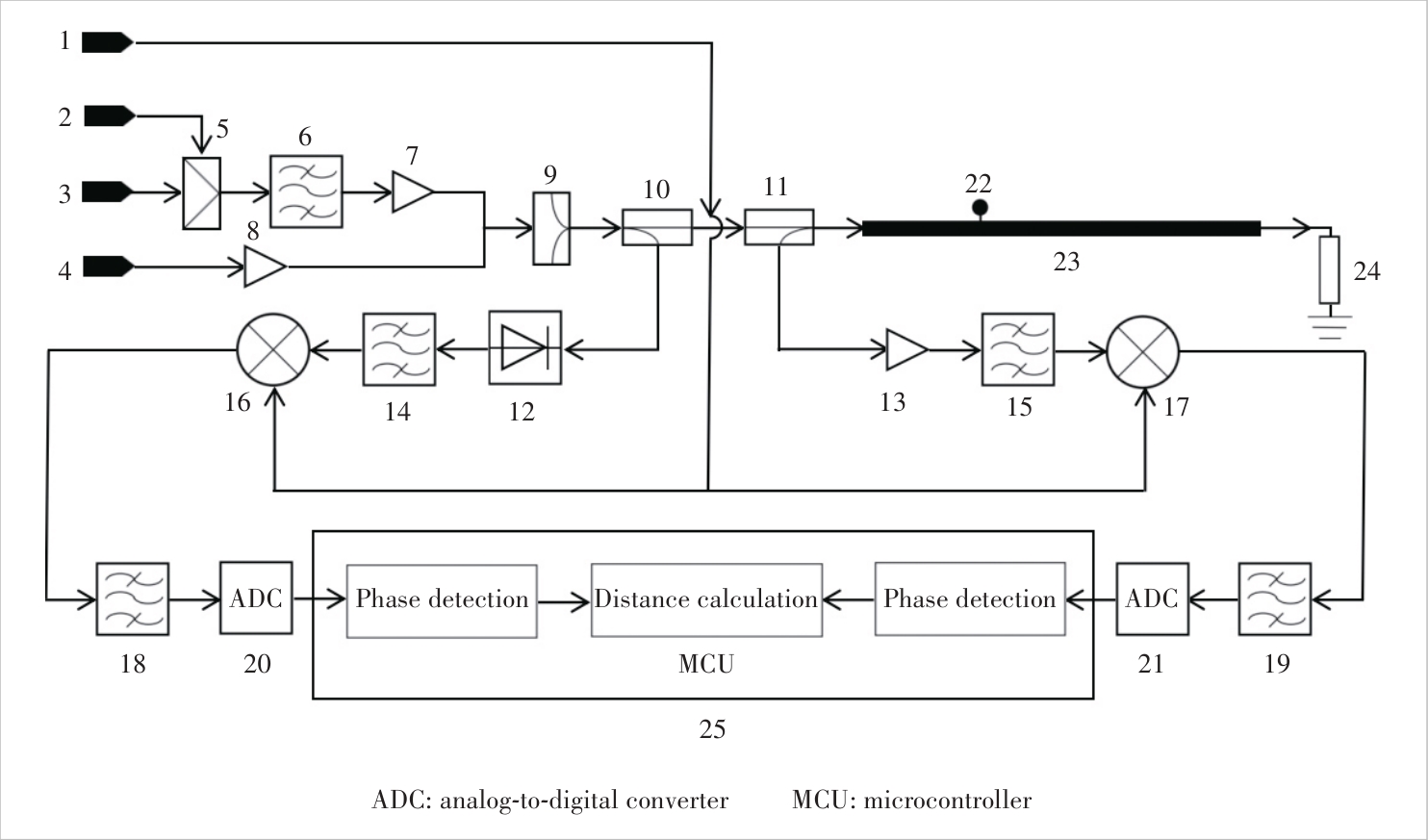

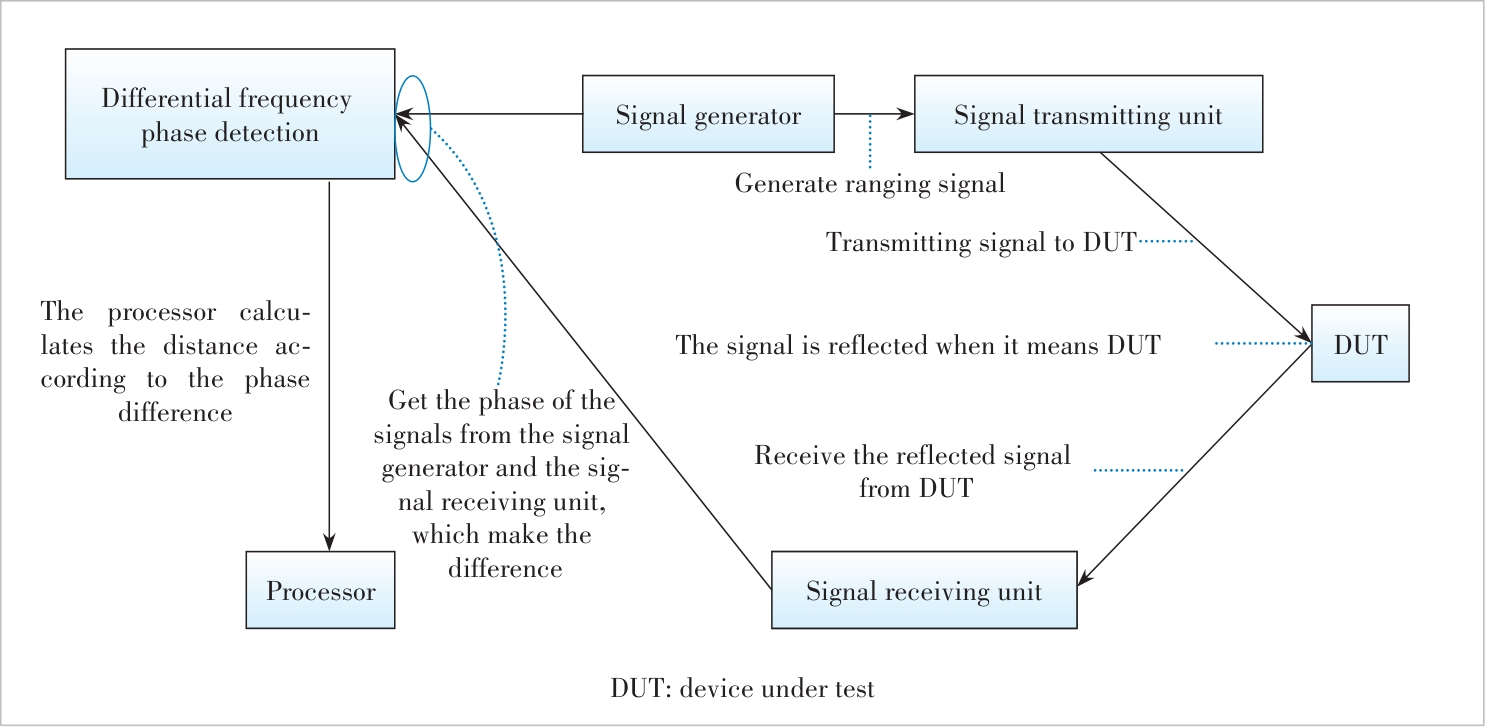

A novel method is developed by utilizing the fractional frequency based multi-range rulers to precisely position the passive intermodulation (PIM) sources within radio frequency (RF) cables. The proposed method employs a set of fractional frequencies to create multiple measuring rulers with different metric ranges to determine the values of the tens, ones, tenths, and hundredths digits of the distance. Among these rulers, the one with the lowest frequency determines the maximum metric range, while the one with the highest frequency decides the highest achievable accuracy of the position system. For all rulers, the metric accuracy is uniquely determined by the phase accuracy of the detected PIM signals. With the all-phase Fourier transform method, the phases of the PIM signals at all fractional frequencies maintain almost the same accuracy, approximately 1°(about 1/360 wavelength in the positioning accuracy) at the signal-to-noise ratio (SNR) of 10 dB. Numerical simulations verify the effectiveness of the proposed method, improving the positioning accuracy of the cable PIM up to a millimeter level with the highest fractional frequency operating at 200 MHz.

Key words: passive intermodulation, location, multi-range

. [J]. ZTE Communications, 2025, 23(1): 101-106.

DONG Anhua, LIANG Haodong, ZHU Shaohao, ZHANG Qi, ZHAO Deshuang. Precise Location of Passive Intermodulation in Long Cables by Fractional Frequency Based Multi-Range Rulers[J]. ZTE Communications, 2025, 23(1): 101-106.

图/表 8

参考文献 12

1	CAI Z H, LIU L, DE PAULIS F, et al. Passive intermodulation measurement: challenges and solutions [J]. Engineering, 2022, 14: 181–191. DOI: 10.1016/j.eng.2022.02.012
2	ZHANG L, WANG H G, HE S T, et al. A segmented polynomial model to evaluate passive intermodulation products from low-order PIM measurements [J]. IEEE microwave and wireless components letters, 2019, 29(1): 14–16. DOI: 10.1109/LMWC.2018.2883719
3	WANG X L, CHEN X, SUN D Q. A compact contactless waveguide band-pass filter for high sensitivity passive intermodulation measurement [C]//Proceedings of IEEE MTT-S International Wireless Symposium (IWS). IEEE, 2023: 1–3. DOI: 10.1109/IWS58240.2023.10223117
4	ISHIBASHI D, KUGA N. Numerical analysis of DUT-size effect on PIM measurement using standing-wave coaxial tube [C]//Asia Pacific Microwave Conference. IEEE, 2009: 2609–2612. DOI: 10.1109/APMC.2009.5385244
5	CANTALI G, DENIZ E, OZAY O, et al. PIM detection in wireless networks as an anomaly detection problem [C]//International Balkan Conference on Communications and Networking (BalkanCom). IEEE, 2023: 1–6. DOI: 10.1109/BalkanCom58402.2023.10167980
6	WANG W B, WANG Y M, ZANG W X, et al. Physical mechanisms of passive intermodulation: a short review [C]//International Applied Computational Electromagnetics Society Symposium (ACES-China). IEEE, 2022: 1–3. DOI: 10.1109/ACES-China56081.2022.10064913
7	XU Z. Research on electromagnetic interference source location algorithm based on near-field scanning [D]. Hangzhou: Zhejiang University, 2022. DOI: 10.27461/d.cnki.gzjdx.2022.000065
8	YONG S, YANG S, ZHANG L, et al. Passive intermodulation source localization based on emission source microscopy [J]. IEEE transactions on electromagnetic compatibility, 2020, 62(1): 266–271. DOI: 10.1109/TEMC.2019.2938634
9	YANG S, WU W, XU S, et al. A passive intermodulation source identification measurement system using a vibration modulation method [J]. IEEE transactions on electromagnetic compatibility, 2017, 59(6): 1677–1684. DOI: 10.1109/TEMC.2017.2705114
10	ZHANG M, ZHENG C, WANG X, et al. Localization of passive intermodulation based on the concept of K-space multicarrier signal [J]. IEEE transactions on microwave theory and techniques, 2017, 65(12): 4997–5008. DOI: 10.1109/TMTT.2017.2705099
11	LIU X H. Design of pulsed semiconductor laser ranging system [D]. Hohhot: Inner Mongolia University, 2014
12	SHITVOV P A, ZELENCHUK E D, SCHUCHINSKY G A, et al. Passive intermodulation generation on printed lines: near-field probing and observations [J]. IEEE transactions on microwave theory and techniques, 2008, 56(12): 3121–3128, DOI: 10.1109/TMTT.2008.2007136

编辑推荐 0

Metrics

阅读次数

全文

HTML			PDF

最新录用	在线预览	正式出版	最新录用	在线预览	正式出版
0	0	1	0	0	41

来源	本网站	其他网站

次数	40	2
比例	95%	5%

摘要

最新录用	在线预览	正式出版

0	0	72

	来源	本网站

	次数	73
	比例	100%

Distance/m	Error#1/mm	Error#2/mm	Error#3/mm	Error#4/mm	Error#5/mm	Average Error/mm
20	0.692	0.795	0.751	0.780	0.721	0.747 8
18	0.467	0.557	0.287	0.287	0.467	0.413 0
16	0.336	0.336	0.236	0.336	0.236	0.296 0
14	0.741	0.719	0.732	0.727	0.732	0.730 2
12	0.300	0.519	0.339	0.191	0.300	0.329 8
10	0.332	0.575	0.413	0.494	0.332	0.429 2
7	0.433	0.357	0.509	0.509	0.585	0.478 6
5	0.280	0.280	0.508	0.166	0.166	0.280 0
3	0.689	0.737	0.737	0.717	0.746	0.735 2
1	0.504	0.262	0.357	0.452	0.357	0.386 4
0.7	0.259	0.259	0.450	0.641	0.641	0.450 0
0.5	0.658	0.710	0.710	0.658	0.658	0.678 8
0.3	0.780	0.693	0.564	0.607	0.607	0.650 5
0.1	0.174	0.399	0.286	0.174	0.286	0.263 8

Distance/m	Error#1/mm	Error#2/mm	Error#3/mm	Error#4/mm	Error#5/mm	Average Error/mm
20	0.692	0.795	0.751	0.780	0.721	0.747 8
18	0.467	0.557	0.287	0.287	0.467	0.413 0
16	0.336	0.336	0.236	0.336	0.236	0.296 0
14	0.741	0.719	0.732	0.727	0.732	0.730 2
12	0.300	0.519	0.339	0.191	0.300	0.329 8
10	0.332	0.575	0.413	0.494	0.332	0.429 2
7	0.433	0.357	0.509	0.509	0.585	0.478 6
5	0.280	0.280	0.508	0.166	0.166	0.280 0
3	0.689	0.737	0.737	0.717	0.746	0.735 2
1	0.504	0.262	0.357	0.452	0.357	0.386 4
0.7	0.259	0.259	0.450	0.641	0.641	0.450 0
0.5	0.658	0.710	0.710	0.658	0.658	0.678 8
0.3	0.780	0.693	0.564	0.607	0.607	0.650 5
0.1	0.174	0.399	0.286	0.174	0.286	0.263 8

PIM Locating Technology	Scenario	Distance/m	Working Frequency/MHz	Error/mm
The near-field scanning^{[1, 12]}	Microstrip line	0.21	935–960	10
Acoustic vibration^{[1, 9]}	Antenna	–	1 850–1 990	10
K-space muti-carrier signals^[10]	Cables	2.437	1 125–1 175	37.5
Emission source microsopy^[8]	PCB	0.7	1 932–1 985	5
Our work	Cables	20	1 805–1 880	0.519

PIM Locating Technology	Scenario	Distance/m	Working Frequency/MHz	Error/mm
The near-field scanning^{[1, 12]}	Microstrip line	0.21	935–960	10
Acoustic vibration^{[1, 9]}	Antenna	–	1 850–1 990	10
K-space muti-carrier signals^[10]	Cables	2.437	1 125–1 175	37.5
Emission source microsopy^[8]	PCB	0.7	1 932–1 985	5
Our work	Cables	20	1 805–1 880	0.519
